Our expertise in surgical lighting
SURGIRIS R&D engineers create patents, technologies, and exclusive innovations in-house to best meet your needs and facilitate your everyday life.
Our patents and exclusive technologies
Thanks to our 25 years of experience in biomedical technologies, we have been able to develop in-house exclusive patents for surgical lights to meet thedemanding needs of the operating room.

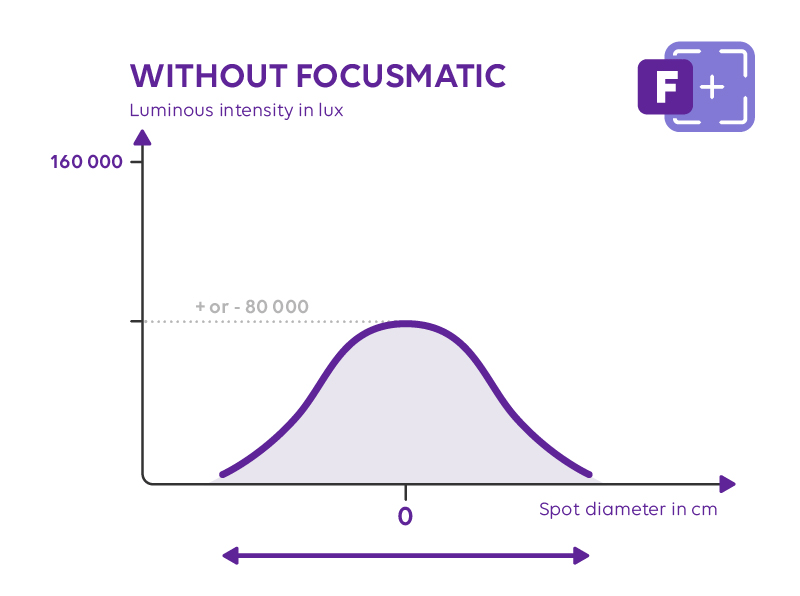

FOCUSMATIC
Our exclusive patented FOCUSMATIC technology allows the diameter of the light field of surgical lights to be adjusted to a very wide field without any loss of intensity in the central light.
Benefits
- Maximum power in wide field
- Electronic focusing

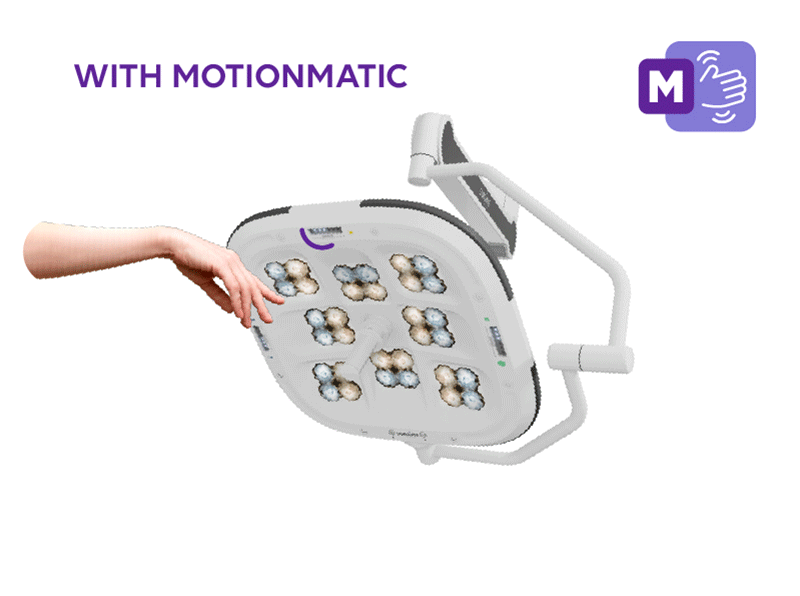

MOTION MATIC
SURGIRIS exclusive patented MOTION MATIC technology makes it possible for contactless operating lighting room settings. To vary a parameter, simply move your hand about 5 cm from the sensor from left to right.
Benefits
- Speed of execution
- Settings in the sterile area

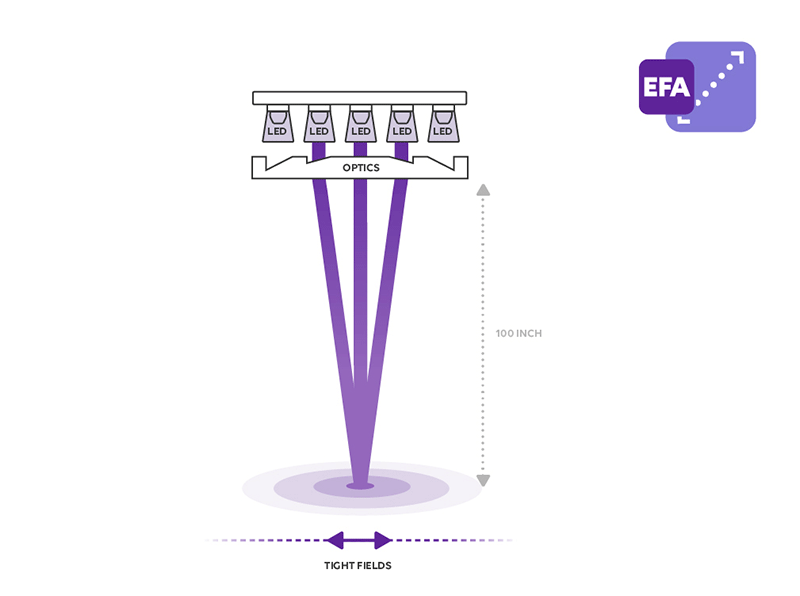

Our embedded technologies: EFA
SURGIRIS EFA (Electronic Focus Adjustment) makes it possible to vary the field diameter without any mechanical movements thanks to LED control combined with specific optics.
Benefits
- No failures related to mechanical movements
- Reduced maintenance costs

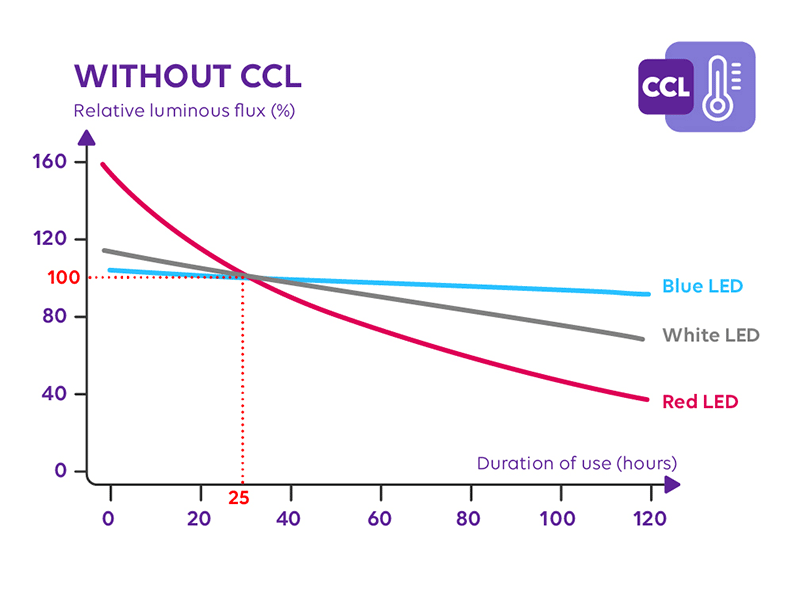

CCL – Constant Colorlighting Level
SURGIRIS CCL (Constant Colorlighting Level) makes it possible to monitor every LED to guarantee stable colour rendering as long as the lighting is in use.
Benefits
- Perfect operating area colour reproduction
- Visual comfort for the surgeon

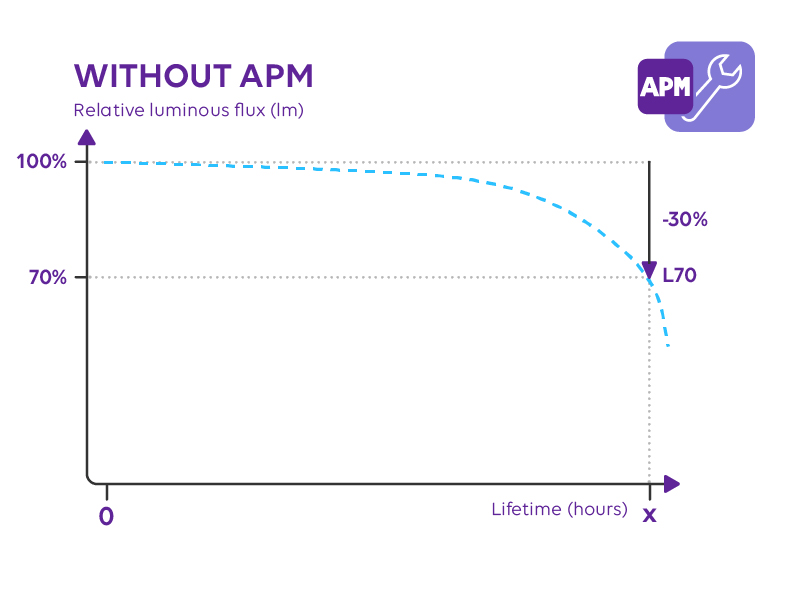

APM – Automatic Preventive Maintenance
Our APM (Automatic Preventive Maintenance) lifetime correction algorithm maintains initial performancethroughout the entire lifetime of surgical lights.
Benefits
- Guaranteed effectiveness as on day 1
- No update maintenance

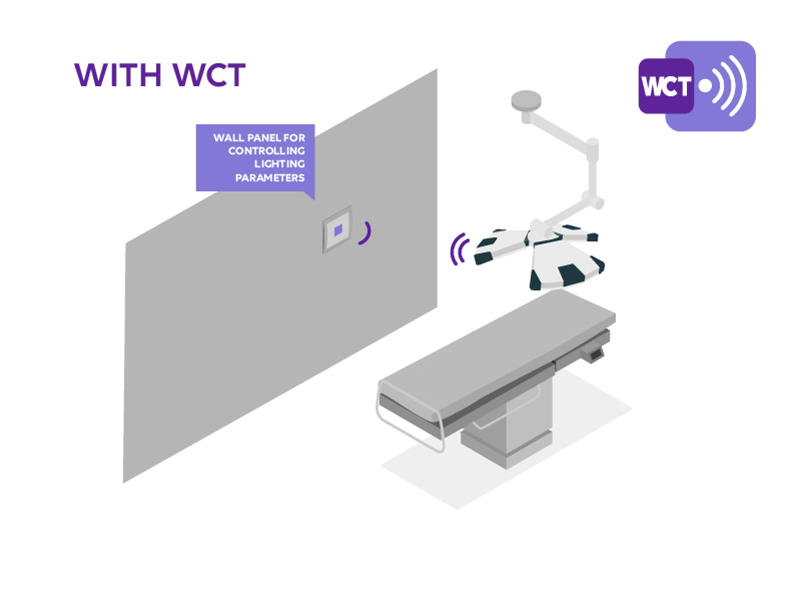

WCT – Wireless Communication Technology
SURGIRIS WCT (Wireless Communication Technology) makes wireless lighting and camera control possible.
Benefits
- Simplified room refurbishment
- Easy to install (no cables)
OUR INNOVATIONS
Shadow elimination
Thanks to ourunique technology for superimposing the light spots from surgical lamps, the surgeon has no shadows on the surgical field.
Laminar flow
The innovative design of SURGIRIS surgical lights has been developed to cause onlyminimal disruption(28/29%) to the laminar flow in accordance with DIN 1946-4.
Key features of our surgical lights
COLOR TEMPERATURE
Our surgical lights offer variable color temperature. You can vary the temperature between 3,500 K and 5,000 K (depending on the model) to suit your cardiac, orthopedic, vascular, and other types of surgery.
PROTECTION RATING
The protection index classifies and evaluates the degree of protection (dust intrusion, accidental contact, and water) provided by mechanical and electrical enclosures. Our operating lights guarantee IP54 protection.

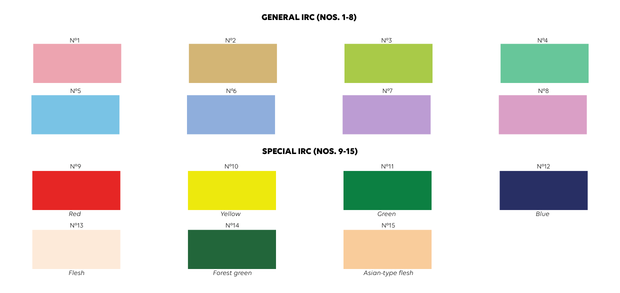

COLOR RENDERING
SURGIRIS surgical lighting has an excellent colour rendering with an Ra & R9 of up to 99 (depending on the model). The R9 represents red, which is very important in surgery to be able to see blood tissue.
Need more information?
We are here to help!
Download the documentation
Frequently Asked Questions
Innovative embedded technologies
Surgiris surgical lights incorporate innovative embedded technologies designed to meet the demands of modern operating rooms. Each light is equipped with advanced features that allow precise control of intensity, focus, and color rendering, ensuring optimal visibility for the surgeon throughout the procedure.
Focusmatic technology allows the diameter of the light field to be adjusted electronically without any loss of intensity in the center, while EFA offers field variation without moving parts, reducing the risk of failure and maintenance. CCL systems guarantee consistent color rendering, even during long procedures, and the lamps have an excellent color rendering index (Ra and R9) for accurate distinction of tissues and anatomical structures.
MOTION MATIC and WCT technologies facilitate contactless and wireless control of the lights, allowing for intuitive and quick adjustments in sterile areas, while simplifying installation and integration with other surgical devices. The color temperature variation adapts to the specific needs of each specialty, and the high protection rating (IP) ensures safety and reliability in sterile environments.
Finally, the APM (Automatic Preventive Maintenance) function maintains light output throughout the lamp's lifetime, ensuring reliability and visual comfort. All these innovations enable surgical teams to work in optimal conditions, with precise, uniform, and reliable lighting, while facilitating traceability and safety during procedures.
Combining ergonomics, advanced technologies, and reliability, Surgiris surgical lights offer a comprehensive solution for improving clinical performance and optimizing operating room efficiency.
